80-120 KN New Hydraulic Wire Cutter for Cutting in Light Weight

Name: 80120 KN New Hydraulic Wire Cutter for Cutting in Light Weight
Brand: XINYA
Price: 150 USD

80-120 KN New Hydraulic Wire Cutter for Cutting in Light Weight Manufactures

Brand Name : XINYA

Model Number : CPC

Certification : ISO

Place of Origin : Jiangsu,China

MOQ : 1 Set/Sets

Price : USD150-250/set

Payment Terms : L/C, T/T,

Supply Ability : 500 Set/Sets per Month

Delivery Time : 7 workdays after payment

Packaging Details : standard export wooden case

Condition : new

Cutting force(KN) : 80-120

Weight(KG) : 3.6-7

Contact Now

80-120 KN New Hydraulic Wire Cutter for Cutting in Light Weight

Use and Characteristic

1 The tool features a double apeed action:a fast advancing speed for rapid approach of the blades to the connector and a slower more powerful speed for cutting.

2 For ease of operation and comfort the operator the tool head can be fully rotated through 360 degrees.

The built in safety valve will bypass the oil supply when the maximum pressure is reached,and the pressure release system can easily be operated at any stage of compression.

3 With interchangeable dies.

4 Steel cutting heads which can be mounted in the most convenient position for the user working in difficult locations such as shafts or towers.

5 Easy to replace blades.

6 Spring return in single acting model.

Carrying box for protection and ease of transport.

Technical Data for Hydraulic Wire Cutter

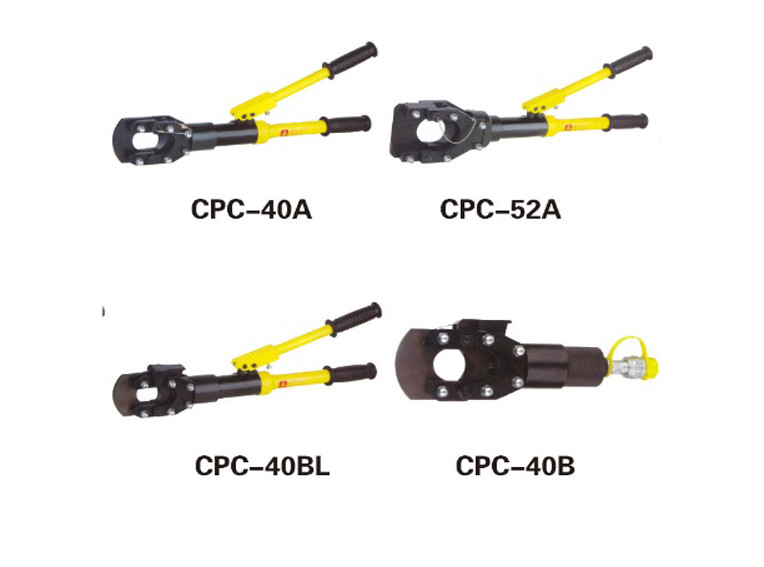

Product No.	Model Type	Cutting Force(KN)	Length(mm)	Cutting Rang	Weight(KG)
80257	CPC-40A	80	570	telephone cableΦ40mm; steel aluminum core armored cableΦ32mm	5.0
80258	CPC-52A	120	615	telephone cableΦ50mm; steel aluminum core armored cableΦ45mm	7.0
80259	CPC-40BL	120	480	ACSR Φ40mm;steel wire Φ28mm	5.0
80260	CPC-40B	100	320	telephone cableΦ40mm; steel aluminum core armored cableΦ28mm	3.6
