Product Overview
The GSS-3 fast cable conveyor is engineered for power cable laying in urban power grid transformation, new cable construction, and long-distance cable installation projects. With 2*1.0kW motor power, 8000N conveying force, and 16m/min conveying speed, it significantly reduces manual pulling force and enhances cable laying efficiency.
This machine accommodates cables with diameters ranging from 10mm to 100mm. Its rubber die-cast conveyor wheels protect the cable outer sheath, while the adjustable center distance allows on-site adaptation to various cable diameters.
Challenges in Cable Laying
Contractors frequently encounter these issues during power cable laying projects:
- High labor intensity during long-distance cable pulling
- Low efficiency in cable trench or construction well operations
- Cable sheath damage from hard pulling or unsuitable rollers
- Difficulty maintaining stable cable movement over extended routes
- Poor synchronization when using multiple machines simultaneously
Root Causes
These challenges primarily stem from:
- Insufficient manual pulling force
- Increased friction resistance over long laying distances
- Cable diameter variations on site
- Conveyor wheels lacking proper cable surface protection
- Absence of synchronized control for multiple conveyors
Engineering Solutions
The GSS-3 fast cable conveyor addresses these issues through:
- 8000N conveying force – Provides robust cable pushing and pulling assistance
- 2*1.0kW motor power – Delivers stable power for long-distance laying
- 10-100mm cable range – Accommodates diverse cable size applications
- Rubber die-cast conveyor wheels – Minimize cable sheath damage
- Adjustable center distance – Adapts to different cable outside diameters
- Multiple-machine series operation – Enables synchronized control for long cable routes
Operational Principle

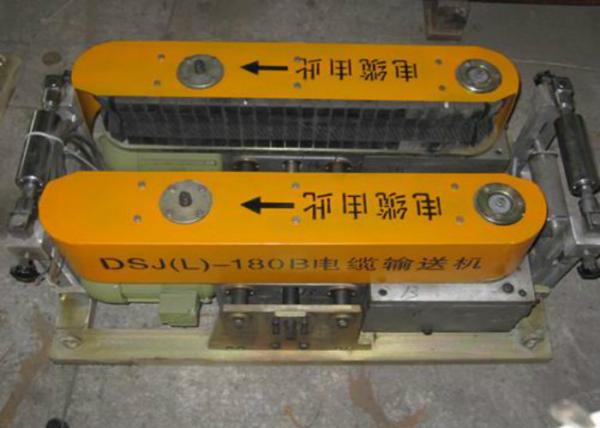

The GSS-3 cable conveyor clamps the cable using rubber conveyor wheels and propels it forward via motor power. The adjustable center distance between conveyor wheels accommodates various cable outside diameters, ensuring stable cable contact and minimizing damage to the cable sheath.

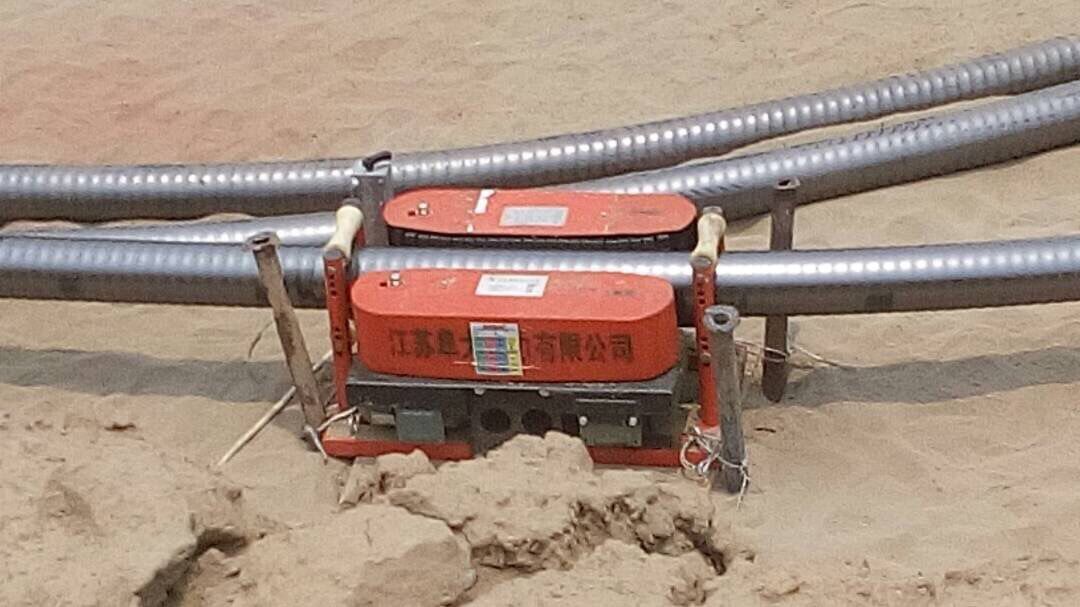

For short-distance applications, a single machine operates independently. For long-distance cable laying, multiple GSS-3 conveyors can be positioned along the cable route and synchronized through a central control box, reducing cable pulling resistance and enhancing operational efficiency.
Application Scenarios
The GSS-3 fast cable conveyor is extensively utilized in:
- Urban power grid transformation
- New power cable construction
- Underground cable installation
- Long-distance cable laying
- Cable trench construction
- Construction wells and cable tunnels
- Power distribution cable projects
- Utility and infrastructure cable installation
Selection Guidance
Choose the GSS-3 when:
- Cable diameter ranges from 10-100mm
- Higher conveying force than GSS-1 is required
- Long-distance cable laying makes manual pulling inefficient
- Cable sheath protection is critical
- Synchronized long-route cable installation requires multiple units with control box
For larger cable diameters or heavier pulling forces, consider GSS-5 or GSS-6 models.
Key Advantages
8000N High Conveying Force
Delivers powerful pushing and pulling assistance for long-distance power cable laying.
Dual Motor Drive 2*1.0kW
Ensures conveying stability and supports continuous construction operations.
Rubber Die-Cast Conveyor Wheel
Protects cable outer sheath and reduces surface damage during installation.
Adjustable Center Distance
Adapts to cable outside diameters from 10mm to 100mm.
Multiple Machines in Series
Operates as single units or synchronized groups via control box.
Compact Construction Site Design
Ideal for cable trenches, construction wells, and confined working environments.
Frequently Asked Questions
What cable diameter is GSS-3 suitable for?
GSS-3 accommodates cables with diameters from 10mm to 100mm.
What is the conveying force of GSS-3?
The conveying force is 8000N.
Can GSS-3 be used for long-distance cable laying?
Yes. It is particularly suitable for long-distance cable placement, and multiple units can operate in series.
Will the conveyor wheel damage the cable sheath?
The rubber die-cast conveyor wheel helps minimize damage to the cable outer cover.
Can several GSS-3 machines work together?
Yes. Multiple machines can operate in series and synchronize through a control box.
What is the difference between GSS-1 and GSS-3?
GSS-3 features higher conveying force, broader cable diameter range, and dual motor drive, making it more suitable for demanding and extended cable laying projects.
