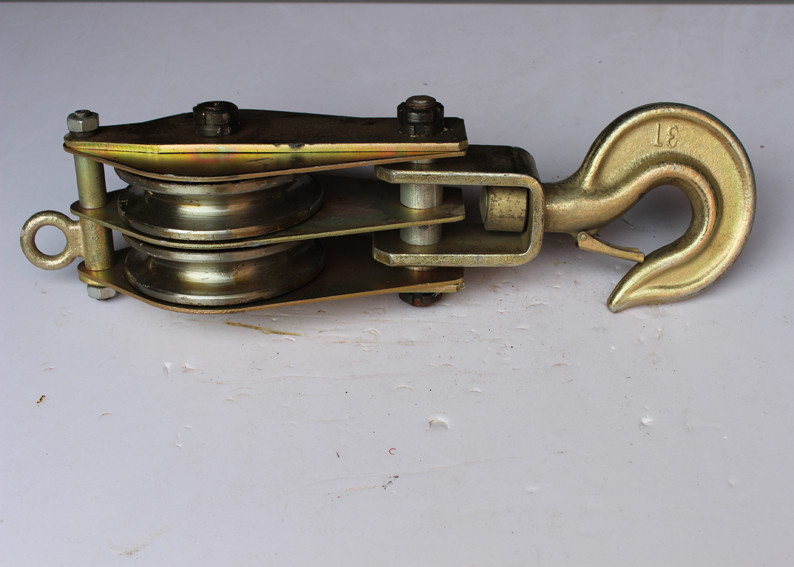

Stringing Tools Two Wheels 30KN Aluminium Alloy Block Pulley

  • 1
  • 2
  • 3

Brand Name : XINYA

Model Number : QHN

Certification : ISO

Place of Origin : Jiangsu, China

MOQ : 10pcs

Price : USD15-50/pc

Payment Terms : L/C, T/T,

Supply Ability : 1000pcs/week

Delivery Time : 7 workdays after payment

Packaging Details : carton

Material : Aluminum Alloy

Rated Load : 10-150KN

Weight : 1.8-13.9KG

Type : Lifting Pulley

Application : lifting for Rope Pulley Blocks

Selling Point : Hook type,single sheave ,double sheave and three sheave

Contact Now

Stringing Tools Two Wheels 30KN Aluminium Alloy Block Pulley

Stringing Tools Two Wheels 30KN Aluminium Alloy Block Pulley

Application

Snatch Steel Wire Rope Pulley Block is for lifting.It can be used in single, also can be used as a block.

Characteristics

1.Material: Aluminum alloy

2.Single wheel opening hook type.Two or three sheaves are closed.

3.It is light weight using the aluminum alloy.

Technical Data

Order number

Model

Number of sheaves

Rated load (kN)

Outside diameter×width(mm)

Weight (kg)

Hoisting point type

11101

QH1GN-1K

1

10

Φ100×31

1.8

G

H

11102

QHN1-2

2

10

Φ80×27

1.8

G

H

11103

QHN1-3

3

10

Φ80×27

2.1

G

H

11111

QHN2-1K

1

20

Φ120×35

2.2

G

H

B

11112

QHN2-2

2

20

Φ100×31

2.6

G

H

11113

QHN2-3

3

20

Φ100×31

3.7

G

H

11121

QHN3-1

1

30

Φ150×39

3.4

G

H

B

11122

QHN3-2

2

30

Φ120×35

4.5

G

H

11123

QHN3-3

3

30

Φ100×31

4.6

G

H

11131

QHN5-1K

1

50

Φ166×40

5.2

G

H

B

11133

QHN5-2

2

50

Φ150×39

5.5

G

H

11134

QHN5-3

3

50

Φ120×35

5.1

G

H

11141

QHN8-1K

1

80

Φ205×49

7.2

G

H

B

11142

QHN8-2

2

80

Φ166×40

8.3

G

H

11143

QHN8-3

3

80

Φ150×39

7.9

G

H

11151

QHN10-1K

1

100

Φ246×60

11.4

G

B

11152

QHN10-2

2

100

Φ166×40

10.2

H

11153

QHN10-3

3

100

Φ150×39

11.7

H

11161

QHN15-1K

1

150

Φ280×65

12.1

B

11162

QHN15-2

2

150

Φ205×49

12.8

H

11163

QHN15-3

3

150

Φ166×40

11.8

H

11164

QHN15-4

4

150

Φ150×39

13.9

H

·uses :applied in line construction to craning weight ,etc.

·Features: to adopt aluminum alloy side panel and MC nylon sheave .so it is light .monosheave block is open.
