PORTABLE 4MM 150M DUCT ROD FIBERGLASS DUCT RODDER UNDERGROUND CABLE TOOLS

Name: PORTABLE 4MM 150M DUCT ROD FIBERGLASS DUCT RODDER UNDERGROUND CABLE TOOLS
Brand: XINYA
Price: 1 USD

PORTABLE 4MM 150M DUCT ROD FIBERGLASS DUCT RODDER UNDERGROUND CABLE TOOLS Manufactures

Brand Name : XINYA

Model Number : P

Certification : ISO

Place of Origin : Jiangsu,China

MOQ : 1 set

Price : Get latest price

Payment Terms : L/C, T/T, , Western Union

Supply Ability : 100sets/day

Delivery Time : 10-15 workdays after payment

Packaging Details : Carton

Application : Cable Pulling

Rod Diameter : 4mm

Material : Fiberglass Reinforced Plastic

Length of pulling rod : 150M

Name : Duct Rod Fiberglass Duct Rodder for Cable Pulling

Type : Cable Rod

MOQ : 5 sets

Warranty : 1 year

Contact Now

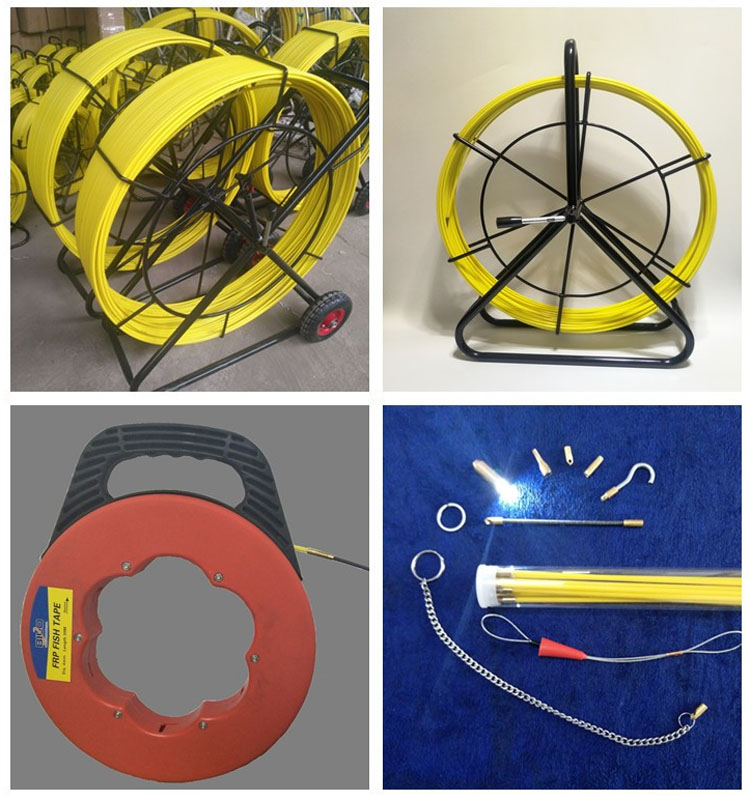

Portable 4mm 150m Duct Rod Fiberglass Duct Rodder for Cable Pulling

Main Specification

Cable Duct Rod Rod Diameter:
4.5mm, 6mm, 8mm, 9mm,10mm,11mm,12mm,13mm,14mm,16mm,18mm
Rod Length:
10-500mtrs
Most popular Size:
4.5x70m, 6100m, 8150m, 10150m, 11250m,12250m, 14250m,16*200m, etc.

Material and physical property

Technology: pultrusion

: -40°C to +80°C

: +/-0.10mm

When you inquire, please advise the rod diameter, length and quantity.

Technical data

Specification(dia. mm)	Max. tensile strength(KN)	Max. bending force(KN)
4.5	---	0.205
6	---	0.396
8	2.67	0.825
9	19.66	1.18
11	19.66	1.18
14	25.36	1.76
16	29.54	2.85

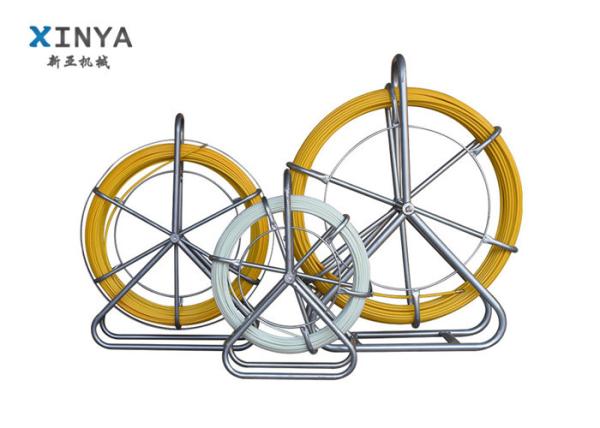

PORTABLE 4MM 150M DUCT ROD FIBERGLASS DUCT RODDER UNDERGROUND CABLE TOOLS

Technical Data

Fibreglass Duct Rod.pdf

Specification	Rod Diameter (mm)	Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16
	Rod Length (m)	30~500
	Frame Spec.(mm)	1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc
	Wheel Diameter(mm)	300mm
	Wall thickness of Metal Frame	2.2mm
	Color	blue, yellow, red, white etc
Material	Rod Inner	Extruded by fiber glass and high strength resin at high temperature
	Rod Outer	High Density polyethylene coating
	Iron Frame	Steel with high-temperature sprayed plastic or Spray coating
	Wheel	rubber
	Brake	Yes
	Drawing head	copper
Physical Characters	Density	55g/m
	Working temperature	-40°C to +80°C
	Breaking tension	100kg
	Bending Radius	295mm
	Technology	Pultrusion
Packaging	Inside	plastic woven strip wind around the frame
Packaging	Outside	Wooden pallet and Wooden box

PORTABLE 4MM 150M DUCT ROD FIBERGLASS DUCT RODDER UNDERGROUND CABLE TOOLS
