Brake Frame Electric Wire Rope Reel Stand For Supporting Cable GSP

  • 1
  • 2

Brand Name : XINYA

Model Number : SE1400Z

Certification : ISO

Place of Origin : MADE IN CHINA

MOQ : 1pc

Price : get latest price

Payment Terms : L/C, T/T,

Supply Ability : 100pcs/month

Delivery Time : 10-15 days after payment

Packaging Details : export package

Name : Steel Wire Rope Reel Stand

Materail : steel

Feature : Traction wire rope

Type : Reel stand

Weight (kg) : 12-59kg

Application : support the steel wire rope reel

Contact Now

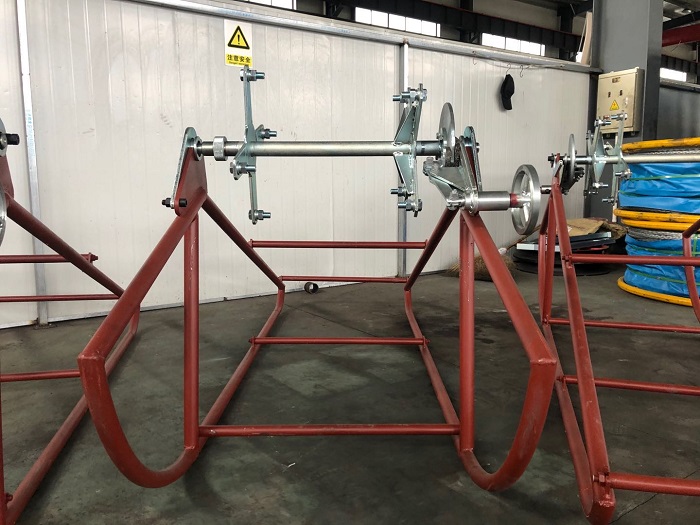

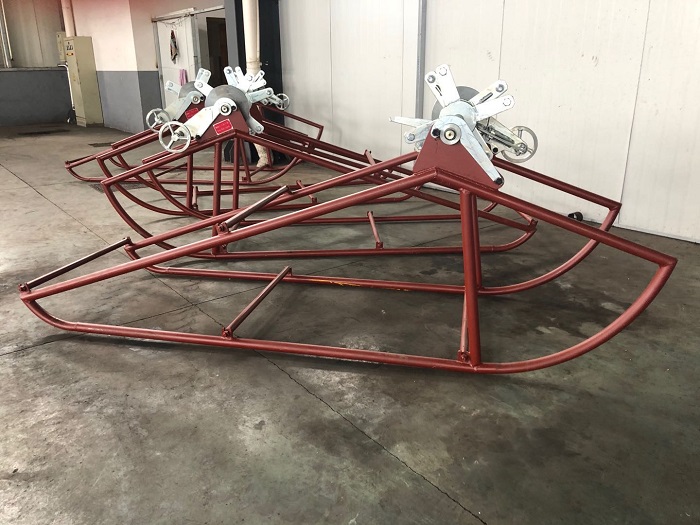

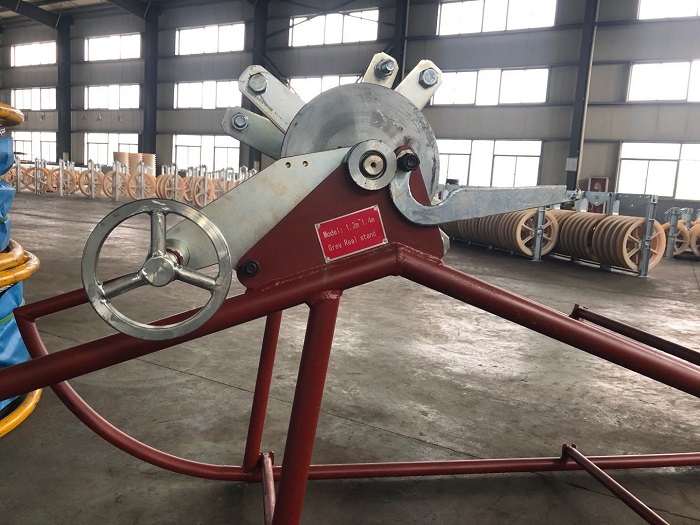

Brake Frame Electric Wire Rope Reel Stand for Supporting Cable Rope Reel GSP Steel Wire Rope Reel Stand

This cradle reel stand is utilized to support the steel wire rope reel. The matched models are put in one-to-one correspondence.

Specification
Item Number
Model
Outer Diameter ×Root Diameter ×Width of Reel (mm)
Weight (kg)
15111
SE-1
Φ480×Φ220×340
13
15112
SE-2
Φ720×Φ400×640
30
15113
SE-3
Φ850×Φ220×340
40
15114
SE-4
Φ950×Φ220×340
50
15115
SE-5
Φ1100×Φ220×340
55
15116
SE-6
Φ1200×Φ220×340
59
Item Number
Model
Outer Diameter ×Root Diameter ×Width of Reel (mm)
Weight (kg)
15101
SE-1J
1000×420×350
12
15102
SE-2J
1400×720×530
16
15103
SE-3J
1400×720×530
20
15104
SE-4J
1660×720×630
20
15105
SE-5J
1750×730×680
30
15106
SE-6J
1840×730×710
39

Brake Frame Electric Wire Rope Reel Stand For Supporting Cable GSP

Brake Frame Electric Wire Rope Reel Stand For Supporting Cable GSP

Brake Frame Electric Wire Rope Reel Stand For Supporting Cable GSP
